| Brand Name : | Shengyong |
| Model Number : | used cnc lathe machine |
| Certification : | iso |
| Price : | as requsted |
| Delivery Time : | in stock |
| Payment Terms : | L/C |
| Supply Ability : | 3set |
Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltdspecializes in the researches, developments, manufactures and sells of metalworking machines: turning cutting lathe,vertical Turning Lathe, vertical turret lathe，cnc turret lathe ,cnc lathe machine,Singlecolumn vertical lathe , Double columnvertical lathe machine ,Heavy duty horizontal lathe machine,Gantry milling machine,boring milling machine etc.

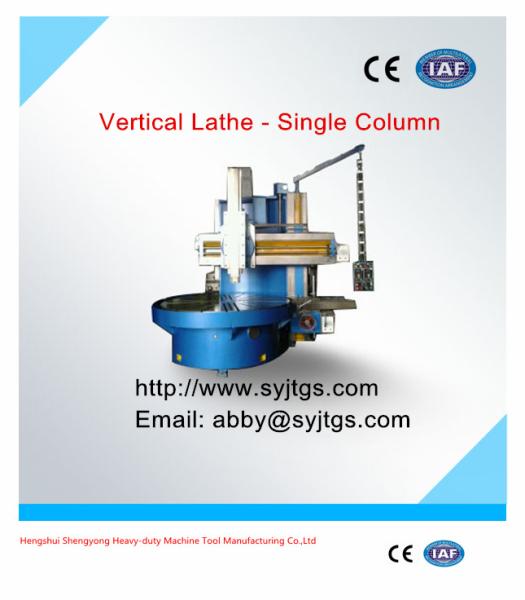

Number | Test Item | Unit | cnc lathe machine C5116A |
1 | Table diameter | mm | 1400 |
2 | Max.turing diameter | mm | 1600 |
3 | Max. Height of workpiece | mm | 1000 |
4 | Max. Weight of workpiece | t | 5 |
5 | Speed range of table | r/min | 5-160 |
6 | Step | 16 | |
7 | Range of feed rates | mm/min | 0.8-86 |
8 | Step | 12 | |
9 | horizontal travel of vertical slide | mm | 915 |
Vertical travel of vertical slide | mm | 800 | |
10 | Horizontal travel of side tool post | mm | 600 |
Vertical travel of side tool post | mm | 900 | |
11 | Crossrail travel | mm | 650 |
12 | Max.size of tool bar section | mm | 30×40 |
13 | Power of main motor | kw | 30 |
Rotating Speed | r/min | 1470 | |
14 | Power of feed motor | kw | 1.3/1.7 |
Rotating Speed | r/min | 940/1440 | |
15 | Machine weight(Approx) | t | 12.5 |
16 | Overall dimensions(L ×W×H) | mm | 2660 x2660 X3528 |
|
|
