| Brand Name : | Shengyong |
| Model Number : | heavy duty metal lathe |
| Certification : | iso |
| Price : | as requsted |
| Delivery Time : | in stock |
| Payment Terms : | L/C |
| Supply Ability : | 3set |

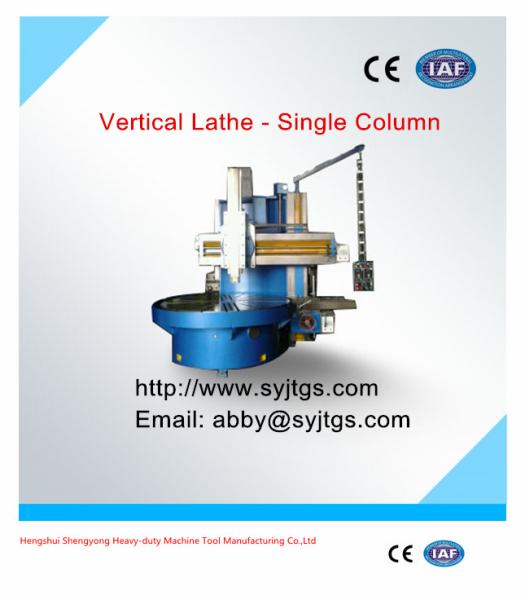

Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltdspecializes in the researches, developments, manufactures and sells of metalworking machines: turning cutting lathe,vertical Turning Lathe, vertical turret lathe，cnc turret lathe ,cnc lathe machine,Singlecolumn vertical lathe , Double columnvertical lathe machine ,Heavy duty horizontal lathe machine,Gantry milling machine,boring milling machine etc.
NO | UNIT | heavy duty metal lathes C5120A | |
1 | Table diameter | mm | 1800 |
2 | Max.turning diameter | mm | 2000 |
3 | Max.height of workpiece | mm | 1200 |
4 | Max.weight of workpiece | t | 6 |
5 | Speed change of table | r/min | 2.5-80 |
6 | Step | 16 | |
7 | Feed rates | min/min | 0.8-86 |
8 | Step | 12 | 12 |
9 | Horizontal travel of tool post | mm | 1000 |
Vertical travel oftool post | mm | 800 | |
10 | Horizontal travel of side cutter bar | mm | 630 |
Vertical travel of side cutter bar | mm | 1000 | |
11 | Crossrail travel | mm | 700 |
12 | Max. section scale of tool bar | mm | 30×40 |
13 | Power of main motor | kw | 30 |
revolutions | r/min | 1470 | |
14 | Power of Feed motor | kw | 1.3/1.7 |
Revolutions | r/min | 940/1440 | |
15 | Machine weight | t | 17.5 |
16 | Overall dimensions(L×W×H) | mm | 3100×3000×3850 |
|
|
