| Brand Name : | Shengyong |
| Model Number : | Used boring and milling machine |
| Certification : | iso |
| Price : | as requsted |
| Delivery Time : | in stock |
| Payment Terms : | L/C |
| Supply Ability : | 3set |
Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltdspecializes in the researches, developments, manufactures and sells of metalworking machines: turning cutting lathe,vertical Turning Lathe, vertical turret lathe，cnc turret lathe ,cnc lathe machine,Singlecolumn vertical lathe , Double columnvertical lathe machine ,Heavy duty horizontal lathe machine,Gantry milling machine,boring milling machine etc.

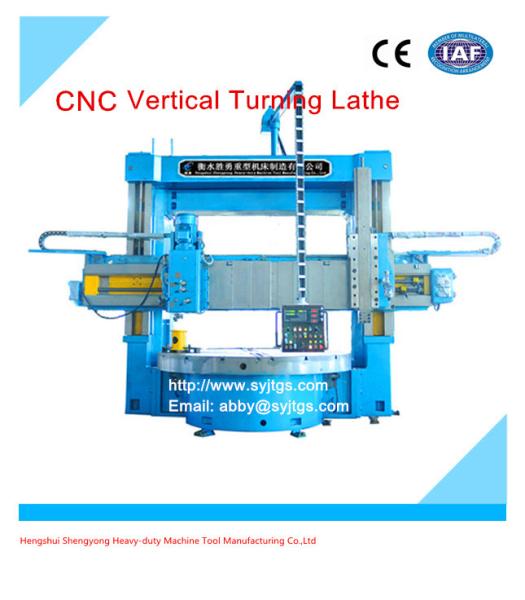

Main Technical specification of boring and milling machine of CTX5235
Number | Title | |
1 | Table diameter | 2830/ 3150mm |
2 | Max.turning diameter of workpiece | 3500mm |
3 | Max. Height of workpiece | 1600/2000/2200/2500/3000mm |
4 | Max. Weight of workpiece | 10/20T |
5 | Max cutting force of carriage,right tool post | 35000N |
6 | Max.torque of table | 63000N·m |
7 | Step of table speed | 16 step |
8 | speed range of table | 2~63rpm |
9 | Step of feed rate | No data |
10 | Feed range | 1~2000mm/min |
11 | Horizontal travel of tool post | 1750mm |
12 | Vertical travel of tool post | 1000mm |
13 | Rapid traverse speed of crossrail | 350mm/min |
14 | Rapid traverse speed of tool post | 2000mm/min |
15 | Max.Rotation range of tool post | ±30° |
16 | Travel of Left boring and milling head | 600mm |
17 | Step of Left boring and milling head | 8 Step |
18 | Speed change of Left boring and milling head | 66-660r/min |
19 | Max.turning diameter of boring hole of Left boring and milling head | Ø400mm |
20 | Size of toolholder clamping((W×H) | 40×50mm |
21 | Power of main motor | 55KW |
22 | Machine weight(appr) | 38T |
|
|
